Quickstart

Dagster orchestrates dbt alongside other technologies, so you can schedule dbt with Spark, Python, etc. in a single data pipeline. Dagster's asset-oriented approach allows Dagster to understand dbt at the level of individual dbt models.

Prerequisites

To follow the steps in this guide, you'll need:

A basic understanding of dbt, DuckDB, and Dagster concepts such as assets and resources
To install the dbt and DuckDB CLIs
To install the following packages:

uv add dagster duckdb plotly pandas dagster-dbt dbt-duckdb

pip install dagster duckdb plotly pandas dagster-dbt dbt-duckdb

Setting up a basic dbt project

Start by downloading this basic dbt project, which includes a few models and a DuckDB backend:

git clone https://github.com/dagster-io/basic-dbt-project

The project structure should look like this:

├── README.md
├── dbt_project.yml
├── profiles.yml
├── models
│   └── example
│       ├── my_first_dbt_model.sql
│       ├── my_second_dbt_model.sql
│       └── schema.yml

First, you need to point Dagster at the dbt project and ensure Dagster has what it needs to build an asset graph. Create a definitions.py in the same directory as the dbt project:

definitions.py
from pathlib import Path

from dagster_dbt import DbtCliResource, DbtProject, dbt_assets

import dagster as dg

# Points to the dbt project path
dbt_project_directory = Path(__file__).absolute().parent / "basic-dbt-project"
dbt_project = DbtProject(project_dir=dbt_project_directory)

# References the dbt project object
dbt_resource = DbtCliResource(project_dir=dbt_project)

# Compiles the dbt project & allow Dagster to build an asset graph
dbt_project.prepare_if_dev()


# Yields Dagster events streamed from the dbt CLI
@dbt_assets(manifest=dbt_project.manifest_path)
def dbt_models(context: dg.AssetExecutionContext, dbt: DbtCliResource):
    yield from dbt.cli(["build"], context=context).stream()


# Dagster object that contains the dbt assets and resource
defs = dg.Definitions(assets=[dbt_models], resources={"dbt": dbt_resource})

Adding upstream dependencies

Often, you'll want Dagster to generate data that will be used by downstream dbt models. To do this, add an upstream asset that the dbt project will use as a source:

definitions.py
import os
from pathlib import Path

import duckdb

import pandas as pd
from dagster_dbt import DbtCliResource, DbtProject, dbt_assets

import dagster as dg

duckdb_database_path = "basic-dbt-project/dev.duckdb"


@dg.asset(compute_kind="python")
def raw_customers(context: dg.AssetExecutionContext) -> None:
    # Pull customer data from a CSV
    data = pd.read_csv("https://docs.dagster.io/assets/customers.csv")
    connection = duckdb.connect(os.fspath(duckdb_database_path))

    # Create a schema named raw
    connection.execute("create schema if not exists raw")

    # Create/replace table named raw_customers
    connection.execute(
        "create or replace table raw.raw_customers as select * from data"
    )

    # Log some metadata about the new table. It will show up in the UI.
    context.add_output_metadata({"num_rows": data.shape[0]})



dbt_project_directory = Path(__file__).absolute().parent / "basic-dbt-project"
dbt_project = DbtProject(project_dir=dbt_project_directory)
dbt_resource = DbtCliResource(project_dir=dbt_project)
dbt_project.prepare_if_dev()


@dbt_assets(manifest=dbt_project.manifest_path)
def dbt_models(context: dg.AssetExecutionContext, dbt: DbtCliResource):
    yield from dbt.cli(["build"], context=context).stream()


# Add Dagster definitions to Definitions object
defs = dg.Definitions(
    assets=[raw_customers, dbt_models],
    resources={"dbt": dbt_resource},
)

Next, add a dbt model that will source the raw_customers asset and define the dependency for Dagster. Create the dbt model:

customers.sql
select
    id as customer_id,
    first_name,
    last_name
from {{ source('raw', 'raw_customers') }}     # Define the raw_customers asset as a source

Next, create a _source.yml file that points dbt to the upstream raw_customers asset:

_source.yml_
version: 2
sources:
  - name: raw
    tables:
      - name: raw_customers
        meta:                               # This metadata:
          dagster:                          # Tells dbt where this model's source data is, and
            asset_key: ["raw_customers"]    # Tells Dagster which asset represents the source data

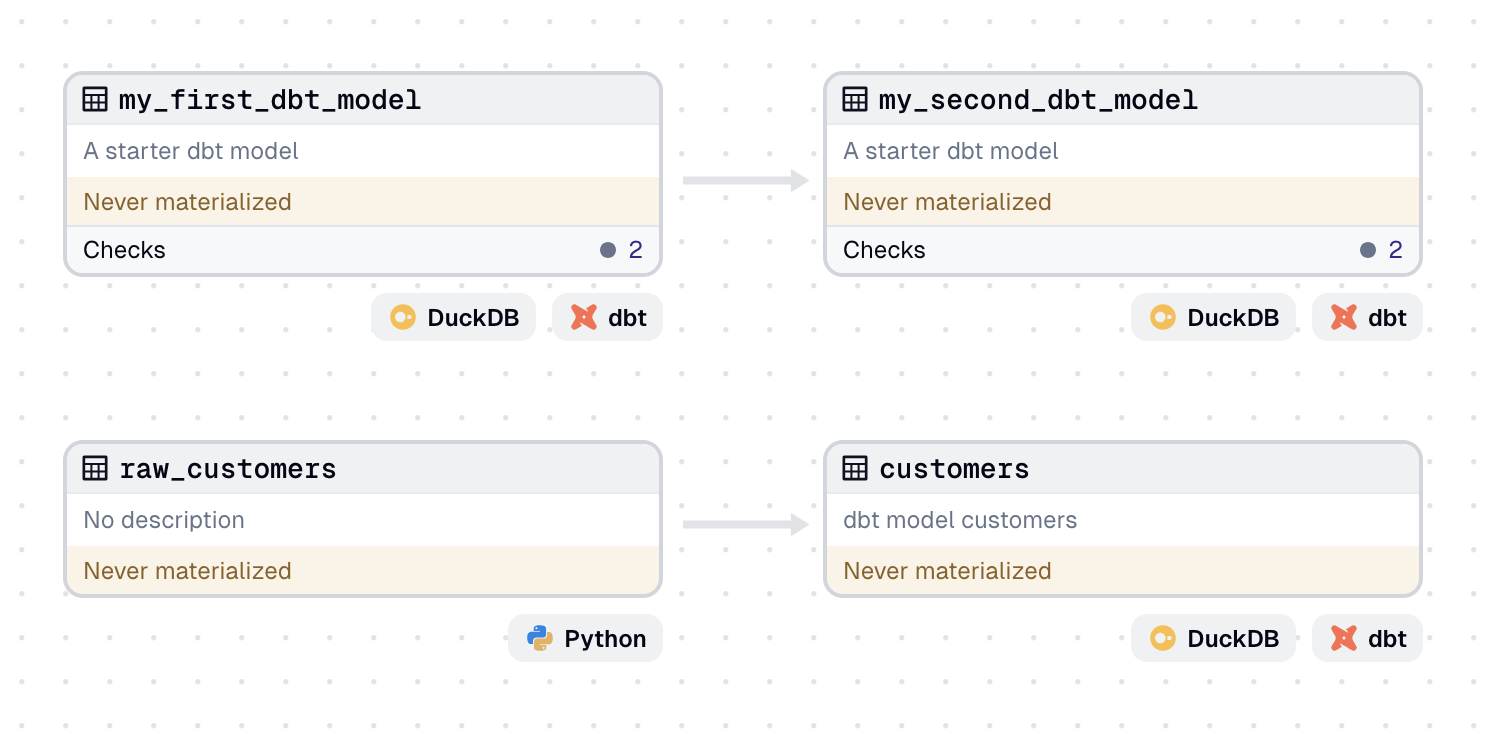

Screenshot of dbt lineage

Adding downstream dependencies

You may also have assets that depend on the output of dbt models. Next, create an asset that depends on the result of the new customers model. This asset will create a histogram of the first names of the customers:

definitions.py
import os
from pathlib import Path

import duckdb
import pandas as pd
import plotly.express as px
from dagster_dbt import DbtCliResource, DbtProject, dbt_assets, get_asset_key_for_model

import dagster as dg

duckdb_database_path = "basic-dbt-project/dev.duckdb"


@dg.asset(compute_kind="python")
def raw_customers(context: dg.AssetExecutionContext) -> None:
    # Pull customer data from a CSV
    data = pd.read_csv("https://docs.dagster.io/assets/customers.csv")
    connection = duckdb.connect(os.fspath(duckdb_database_path))

    # Create a schema named raw
    connection.execute("create schema if not exists raw")
    # Create/replace table named raw_customers
    connection.execute(
        "create or replace table raw.raw_customers as select * from data"
    )

    # Log some metadata about the new table. It will show up in the UI.
    context.add_output_metadata({"num_rows": data.shape[0]})


dbt_project_directory = Path(__file__).absolute().parent / "basic-dbt-project"
dbt_project = DbtProject(project_dir=dbt_project_directory)
dbt_resource = DbtCliResource(project_dir=dbt_project)
dbt_project.prepare_if_dev()


@dbt_assets(manifest=dbt_project.manifest_path)
def dbt_models(context: dg.AssetExecutionContext, dbt: DbtCliResource):
    yield from dbt.cli(["build"], context=context).stream()


@dg.asset(
    compute_kind="python",
    # Defines the dependency on the customers model,
    # which is represented as an asset in Dagster
    deps=[get_asset_key_for_model([dbt_models], "customers")],
)
def customer_histogram(context: dg.AssetExecutionContext):
    # Read the contents of the customers table into a Pandas DataFrame
    connection = duckdb.connect(os.fspath(duckdb_database_path))
    customers = connection.sql("select * from customers").df()

    # Create a customer histogram and write it out to an HTML file
    fig = px.histogram(customers, x="FIRST_NAME")
    fig.update_layout(bargap=0.2)
    fig.update_xaxes(categoryorder="total ascending")
    save_chart_path = Path(duckdb_database_path).parent.joinpath(
        "order_count_chart.html"
    )
    fig.write_html(save_chart_path, auto_open=True)

    # Tell Dagster about the location of the HTML file,
    # so it's easy to access from the Dagster UI
    context.add_output_metadata(
        {"plot_url": dg.MetadataValue.url("file://" + os.fspath(save_chart_path))}
    )


# Add Dagster definitions to Definitions object
defs = dg.Definitions(
    assets=[raw_customers, dbt_models, customer_histogram],
    resources={"dbt": dbt_resource},
)

Scheduling dbt models

You can schedule your dbt models by using the dagster-dbt's build_schedule_from_dbt_selection function:

Scheduling our dbt models
import os
from pathlib import Path

import duckdb
import pandas as pd
import plotly.express as px
from dagster_dbt import (
    DbtCliResource,
    DbtProject,
    build_schedule_from_dbt_selection,
    dbt_assets,
    get_asset_key_for_model,
)

import dagster as dg

duckdb_database_path = "basic-dbt-project/dev.duckdb"


@dg.asset(compute_kind="python")
def raw_customers(context: dg.AssetExecutionContext) -> None:
    # Pull customer data from a CSV
    data = pd.read_csv("https://docs.dagster.io/assets/customers.csv")
    connection = duckdb.connect(os.fspath(duckdb_database_path))

    # Create a schema named raw
    connection.execute("create schema if not exists raw")

    # Create/replace table named raw_customers
    connection.execute(
        "create or replace table raw.raw_customers as select * from data"
    )

    # Log some metadata about the new table. It will show up in the UI.
    context.add_output_metadata({"num_rows": data.shape[0]})


dbt_project_directory = Path(__file__).absolute().parent / "basic-dbt-project"
dbt_project = DbtProject(project_dir=dbt_project_directory)
dbt_resource = DbtCliResource(project_dir=dbt_project)
dbt_project.prepare_if_dev()


@dbt_assets(manifest=dbt_project.manifest_path)
def dbt_models(context: dg.AssetExecutionContext, dbt: DbtCliResource):
    yield from dbt.cli(["build"], context=context).stream()


@dg.asset(
    compute_kind="python",
    # Defines the dependency on the customers model,
    # which is represented as an asset in Dagster
    deps=[get_asset_key_for_model([dbt_models], "customers")],
)
def customer_histogram(context: dg.AssetExecutionContext):
    # Read the contents of the customers table into a Pandas DataFrame
    connection = duckdb.connect(os.fspath(duckdb_database_path))
    customers = connection.sql("select * from customers").df()

    # Create a customer histogram and write it out to an HTML file
    fig = px.histogram(customers, x="FIRST_NAME")
    fig.update_layout(bargap=0.2)
    fig.update_xaxes(categoryorder="total ascending")
    save_chart_path = Path(duckdb_database_path).parent.joinpath(
        "order_count_chart.html"
    )
    fig.write_html(save_chart_path, auto_open=True)

    # Tell Dagster about the location of the HTML file,
    # so it's easy to access from the Dagster UI
    context.add_output_metadata(
        {"plot_url": dg.MetadataValue.url("file://" + os.fspath(save_chart_path))}
    )


# Build a schedule for the job that materializes a selection of dbt assets
dbt_schedule = build_schedule_from_dbt_selection(
    [dbt_models],
    job_name="materialize_dbt_models",
    cron_schedule="0 0 * * *",
    dbt_select="fqn:*",
)


# Add Dagster definitions to Definitions object
defs = dg.Definitions(
    assets=[raw_customers, dbt_models, customer_histogram],
    resources={"dbt": dbt_resource},
    schedules=[dbt_schedule],
)
